Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

Name: Large Range Noncontact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses
Brand: Sensorcon
Price: 600 USD

Quality Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses for sale

Series : Torque sensor

Mounting Type : Fixed installation

Description : Torque sensor, rotary torque sensor

Model Number : ZHKY2051

Type : Torque sensor, non contact rotary torque sensor

Place of Origin : Guangdong, China

Brand Name : Sensorcon

Use : Torque speed power measure

Theory : strain gauge sensor

Output : frequency, 5-15KHZ/ 4-20 mA/ 0-20mA/ 0-10v/ 0-5v

Model : ZHKY2051

Material : Aluminum housing, stainless steel shaft

Capacity : 5N.m - 2000N.m

Torque accuracy : 0.3%/ 0.1%

Output type : Torque and speed

Power supply : ±15 VDC or 24 VDC

Max rotation speed : 15000RPM

Speed measurement : 60 or 120 pulses

Price : $600/pieces 1-4 pieces

Contact Now

Non-contact Rotating Dynamic Torque Sensor large Range high speed Motor Rotary Torque sensor Transducer

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

Product Overviews

Model: ZHKY2051

Item: Noncontact rotary torque sensor

Capacity: 5, 10, 20, 30, 50, 100, 200, 300, 500N.m, 10000N.m 2000N.m, 5000N.m

Material: Aluminum body, stainless steel shaft

Precision: ±0.3 %F.S, ±0.2 %F.S, ±0.1%

Application: Motor, etc.

Speed measure: YES, max. 15,000RPM

(Optional accessories available)

Build-in display: Torque speed power display

External Torque speed power display- PY802

English Software

Features:

1, Small size, non-contact rotary torque sensor on the basis of the special technology of strain bridge.

2, Suitable for all kinds of torque measurement occasions requiring small size high speed.

3, Outputs 5~15kHz frequency, or 0-5V, 0-10V, 4~20mA signal, suitable for long distance transmission.

4, Small in size, easy to use and install and strong signal anti-interference ability.

5, It is non-contact, wear-free, suitable for long-term high-speed rotation.

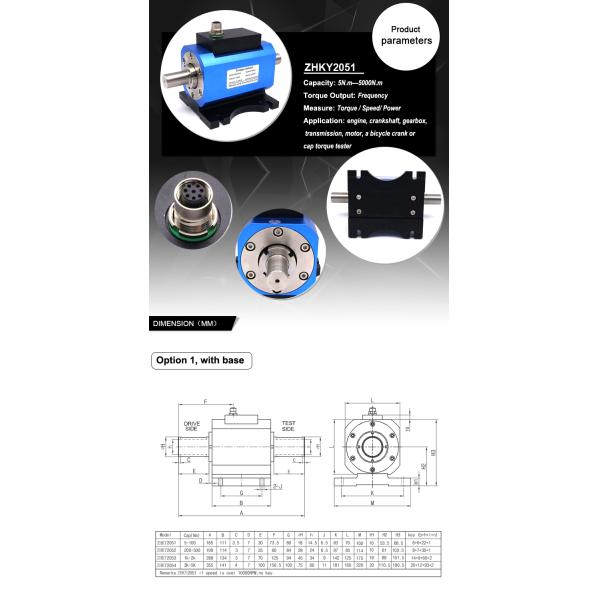

Parameter:

Torque capacity	5, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 3000, 5000N.m
Speed range	0,100,200-1000,4000,6000, 8000,15000 Varies with Capacity
Accuracy	0.1% , 0.2%
Excitation voltage:	12-30VDC 15V DC (for frequency signal output), 24V DC (for voltage or current signal output)
Torque signal output	10±5 KHZ (Zero 10kHz) default 4~20mA, 0±5/10VDC, 0-5/10VDC, RS485/RS232
Speed signal output	60 pulse TTL, on-off output 0-5/10VDC, 4-20mA, RS485/ RS232
Accuracy	±0.3% F.S / ±0.2% F.S/±0.1% F.S
Temp Effect on Zero-%RO/	±0.02
Temp Effect on Range-%RO/	±0.02
Working Temperature range:	0 ~ +50℃
Compensated temperature range	0~+60℃
Electrical connection	6-pins, 8 pins
Safety overload:	200 %F.S
Material	Aluminum housing, stainless steel shaft
Cable length:	5 m
Cable connection:	Red: Exc+ Black: Exc - Green: Signal + White: Signal-

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

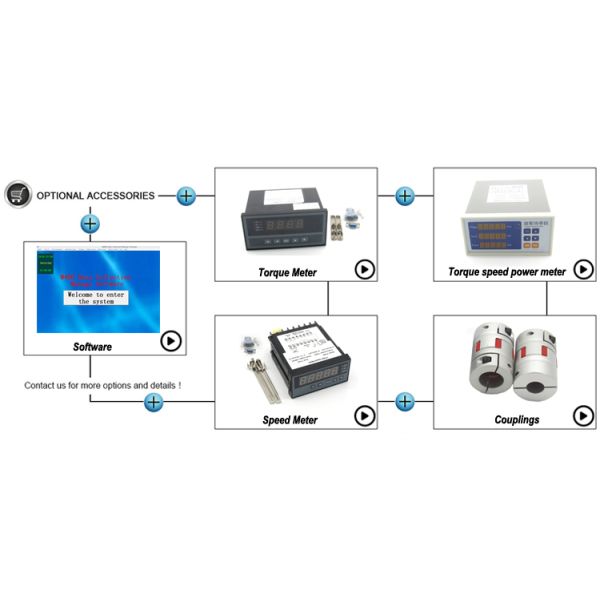

Accessories

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

Product Uses

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

Company Information

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

Packaging & Shipping

Large Range Non-contact Motor Rotary Torque Sensor Transducer for High Speed Torque and Speed Output at 60 or 120 Pulses

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
